Our Products

obniz provides IoT optimized "Device" , "OS" and "cloud" to collaborate all system.

Official Devices

obniz official devices come with licensed obnizOS pre-installed.
Connected electrical parts can be controlled throught obniz Cloud.

Official Devices List

obniz Cloud is available for free per month for products that come with "No Expiry cloud licensed devices"
See Pricing for available cloud features.

Wi-Fi
obniz Board

obniz Board

$49 (5,537JPY)

No Expiry Cloud License(Lite Plan)

  • Wi-Fi Connection. BLE/UART/AD/Display/etc
  • Motor Drivers(1A) for ALL 12 IO.

Learn more

Wi-Fi
obniz Board

obniz Board 1Y

$57 (6,300JPY)

No Expiry Cloud License(Lite Plan)

  • Wi-Fi Connection. BLE/UART/AD/Display/etc
  • Sleep function enabled obniz Board

Learn more

Wi-Fi
m5stickc

M5StickC

$57 (6,300JPY)

No Expiry Cloud License(Lite Plan)

  • Wi-Fi Connection. BLE/UART/AD/Display/etc
  • Battery/Color Display/Grove Port

Learn more

Wi-FiWired LAN(Ethernet)
ESP32-DevkitC

ESP32-DevkitC

$46 (4,900JPY)

No Expiry Cloud License(Lite Plan)

  • Wi-Fi Connection. BLE/UART/Button etc
  • GPIO/UART/SPI/ADC/I2C
Wi-FiWired LAN(Ethernet)
ESP32-GATEWAY

ESP32-GATEWAY

$48 (5,000JPY)

No Expiry Cloud License(Lite Plan)

  • Wi-Fi/Ethernet Connection. BLE/UART/AD/Display/etc
  • Wired Lan and SD Card Slottle
Wi-Fi
obniz BLE

obniz BLE/Wi-Fi Gateway

$94 (9,800JPY)

No Expiry Cloud License(Lite Plan)

  • Wi-Fi Connection. BLE
  • Outlet Plug

The following products require a cloud usage fee.

Wi-Fi

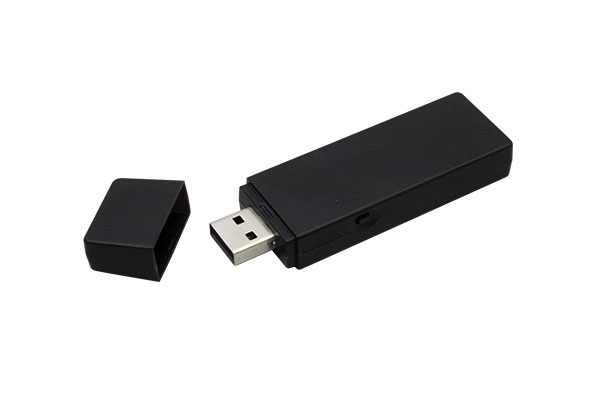

obniz BLE Stick

obniz BLE Stick

500 units 4,500 JPY/unit
1000 units 4,000 JPY/unit

Cloud usage fees: Monthly payment (Pricing)

  • Wi-Fi Connection. BLE
  • USB Type-A
obnizOS
obnizOS

obnizOS is software that runs on the device. It can be installed and used on devices equipped with ESP32 (configured according to ESP32-WROOM32).Enables device IO operation via API in cooperation with the obniz Cloud.

Learn more about obnizOS

Official Kit Products

All parts are included.

obniz Starter Kit

obniz Starter kit

Let's run with JavaScript!
It is a kit product that includes an obniz Board and eight types of electronic components.

Japanese version only

Lear more

AI Robot Kit

AI Robot Kit

Ai Robot Kit is for AI beginner. It let you to start Robot programming with your smartphone.

Japanese version only

Lear more

IoT Home Kit

IoT Home Kit

IoT Home Kit is for starting IoT. Easily make your home IoT with your smartphone.

Japanese version only

Learn more

Introduction of other companies' products with obnizOS.

ArtecRoBo2.0

A programming kit that provides you with all the hardware,software, and parts that you need to start making your own robots.

ArtecRobo2.0 Official Site

ArtecRoBo2.0

Compare Devices (obniz Official Devices)

Devices obniz Board obniz Board 1Y M5StickC M5Stack ESP32-DevkitC ESP32-Gateway obniz BLE obniz BLE Stick
obniz Board obniz Board 1Y M5StickC[obnizOS Installed] M5Stack Basic DevkitC[obnizOS Installed] ESP32-Gateway[obnizOS Installed] obniz BLE obniz BLE Stick
Network
 - Wi-Fi (b/g/n 2.4G)
 - Wired LAN(Ethernet)
Need Ether PHY
OS obnizOS obnizOS obnizOS for M5StickC obnizOS for M5Stack obnizOS for ESP32 obnizOS for ESP32 obnizOS for encored obnizOS for ESP32
Power supply microUSB(5v) USBType-C(5v) USBType-C(5v) USBType-C(5v) microUSB(5v) microUSB(5v) AC100V 50/60Hz USB Type-A
IO voltage 3.3v/5v 3.3v/5v 3.3v 3.3v 3.0~3.6V 3.3v - -
Number of IO 12 12 4 20 21 21 - -
Number of motor drivers(ch num) 12
Over current/heating protection
12
Over current/heating protection
0 0 0 0 0 0
Size(mm) 69.8×36.3 66.6×36.3 48×24 54×54 54.4×27.9 50×62 50×35 24×80
Display Monochrome OLED(White dot)
128*64
Monochrome STN(Black dot)
128*64
Color TFT
80*160
Color TFT
320*240
- - - -
Built-in battery - -
(80mAh Li-Po)

(150mAh)
- - -
Sleep Function -
Time/NMI Interrupt
- - - - -
Peripheral Examples GPIOx12, ADx12, PWMx6, UARTx2, SPIx2, I2Cx1, BLE(Central or Peirpheral)x1 GPIOx12, ADx12, PWMx6, UARTx2, SPIx2, I2Cx1,BLE(Central or Peirpheral)x1 GPIOx4, ADx4, PWMx4, UARTx2, SPIx2, I2Cx1, BLE(Central or Peirpheral)x1 GPIOx20, ADx4, PWMx4, UARTx2, SPIx2, I2Cx1, BLE(Central or Peirpheral)x1 GPIOx21, UARTx2, SPIx2, ADCx6, I2Cx2, BLE(Central or Peirpheral)x1 GPIOx21, ADx6, PWMx6, UARTx2, SPIx2, I2Cx2, BLE(Central or Peirpheral)x1 BLE(Central or Peirpheral)x1 BLE(Central or Peirpheral)x1
Other accessories - Power(J1 Pin) - 5V・3.3V・GND Connector - 6 axis IMU
- Red LED
- IR Transmittor
- Grove Port
- microSD
- speaker
- Grove Port
- EN/Boot button
- USB-to-UART Bridge
- Micro SD
License No Expiry Cloud License(Lite Plan) No Expiry Cloud License(Lite Plan) No Expiry Cloud License(Lite Plan) - No Expiry Cloud License(Lite Plan) No Expiry Cloud License(Lite Plan) No Expiry Cloud License(Lite Plan) (Cloud usage fee not included)
Price $49 (5,537JPY) $57 (6,300JPY) $57 (6,300JPY) - $46 (4,900JPY) $48 (5,000JPY) $94 (9,800JPY)〜 1000 units 4,000 JPY/unit~
500 units 4,500 JPY/unit~

You will Get in Few Days

Circuit for Starter “obniz Board” is available on Amazon and other online stores.
You can get it at below
