"strange biscuits" biscuits and biscuits by tapping

このエントリーをはてなブックマークに追加

What's is this

This is from Nursery rhyme "Strange Biscuits" (famous in japan). The number of biscuit on Web site is increase by tapping a pocket.

Materials

  • obniz
  • obniz power source - USB adaptor or battery
  • Acceleration sensor - KXR94-2050

Instructions

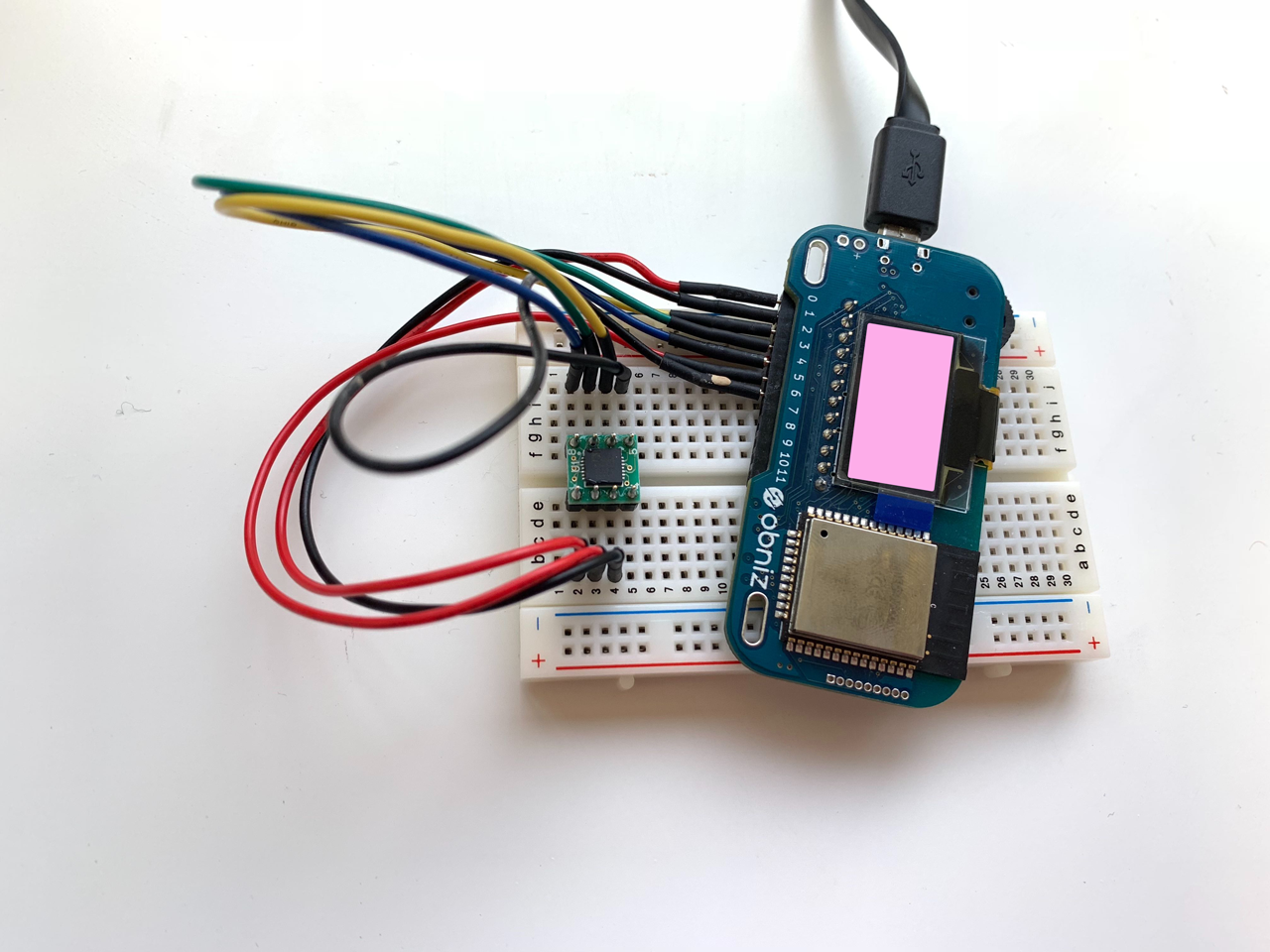

Connect a power source and acceleration sensor to an obniz.

  • (obniz) : (Acceleration sensor)
  • 0 : 1 (Vdd)
  • 1 : 3 (GND)
  • 2 : 6 (X)
  • 3 : 7 (Y)
  • 4 : 8 (Z)
  • 5 : 2 (Enable)
  • 6 : 5 (Self Test)

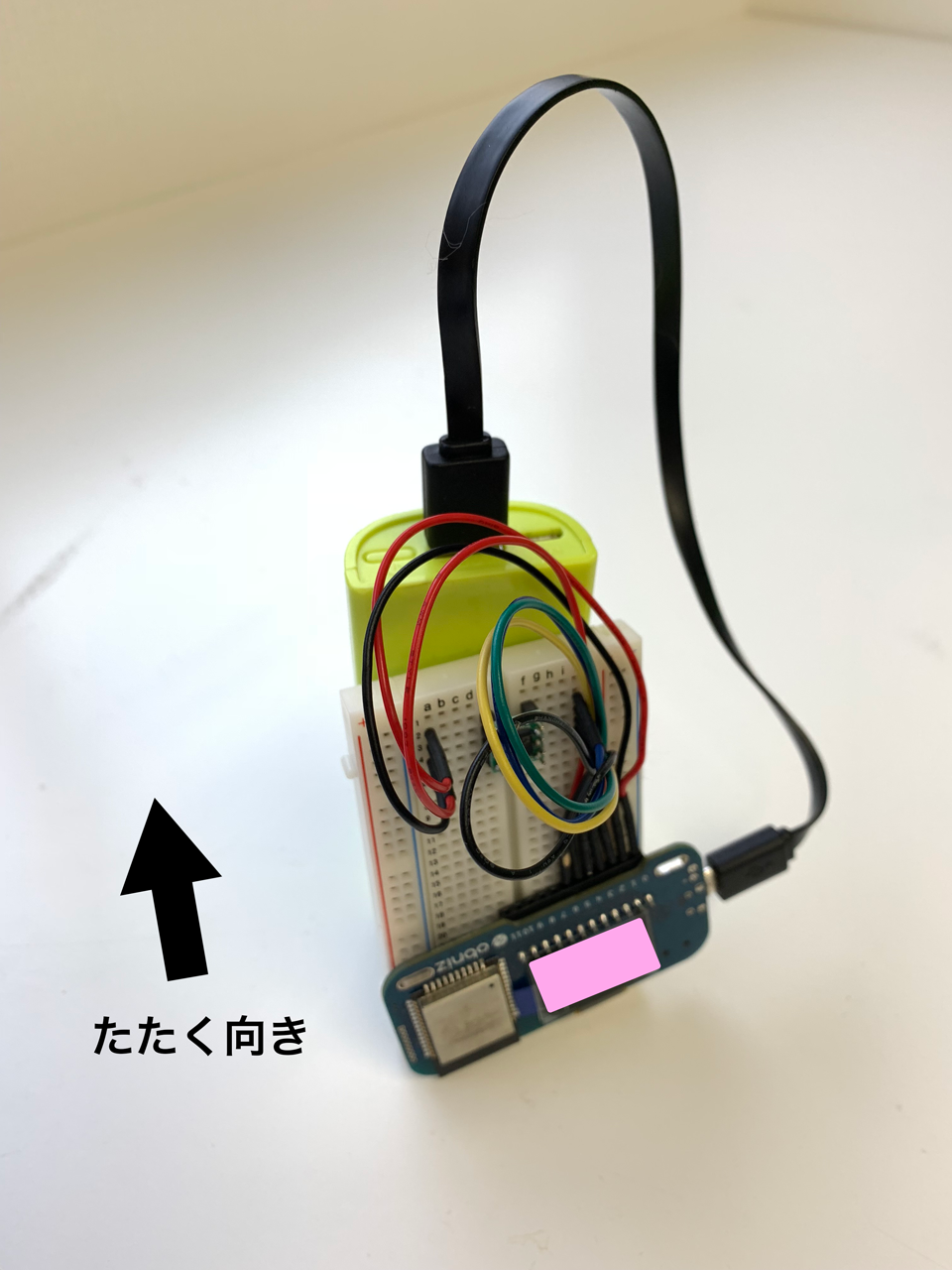

Insert this circuit to your pocket this direction.

Access this website and tap your pocket. The number of biscuits is increasing.

Keeping gap between pocket and you will improve sensitivity.

Program

Program

<!-- HTML Example -->
<html>
<head>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1">
<script src="https://obniz.io/js/jquery-3.2.1.min.js"></script>
<script src="https://unpkg.com/obniz@2.0.2/obniz.js" crossorigin="anonymous"></script>
<link rel="stylesheet" href="https://stackpath.bootstrapcdn.com/bootstrap/4.1.0/css/bootstrap.min.css" integrity="sha384-9gVQ4dYFwwWSjIDZnLEWnxCjeSWFphJiwGPXr1jddIhOegiu1FwO5qRGvFXOdJZ4" crossorigin="anonymous">

<style>
	body {
		background-image: url("https://lh6.googleusercontent.com/lTDHIc24ZcrYqXv5OtaN4pEVGnM0NF_2v-x2-REEjiknug58drWZYLVPj6g7lASsUscEdPboU0_z54oBRGQugZ7393USv4ixCghbW5VqknzX3clQJQ=w472");
		background-position: center center;
		background-repeat: no-repeat;
		background-size: cover;

	}
	p.original{
		text-align: center;
	}
</style>
<title>ふしぎなポケット</title>
</head>
<body>
<div id="bis-images">
	<p class="original"><img src="" width="16%" height="16%"></p>
</div>
<script>

  $(function(){

	  //ビスケット画像のURL
	const bis0URL = "https://lh4.googleusercontent.com/pho0q0bY2mTszj0yTX3WINyiHQez58F2Xima3_FMnIbKV-0wUOSHf1sTbG6k0Ox_ADBCFBGm8FWZbE8MYriUmTRflweuyiOSv5wdf5C2YQTiovOPRy0=w572";
	const bis1URL = "https://lh6.googleusercontent.com/lX7BbW3nrEsF354j3dGjpwdTCkesuvCfVJJ-Sjeq8u-D4Dj6Uh_8B9dbjfB48ZxlhMGIsu4CHnDj8IR-7avirHw2aMtiMoGL5hQHgIeiPUuXfqCiSnY=w572";
	const bis2URL = "https://lh4.googleusercontent.com/-O8oYaNWpBRpwtGQTrtUZ-2VE2yRtmuxbA3V4hDQENNApqjagUYjS-o941WQzgZudazq1ado4xZqn9xIn6y53-fAh69QEbvGBX71I8BVtJG5ZjciZ49W=w572";
	const bis3URL = "https://lh5.googleusercontent.com/KWGEHLpHTH5WmHnXsHxBGcGauyfD9Xx4Li2_yMxflLqy1JOvf7uOYvpPrnTqKLe-HaYWPohPer9sPCRT2jlVaN6FfdJd6bUWp33zR4EEyeFPK8GCRw=w572";
	const bis4URL = "https://lh5.googleusercontent.com/UDR3LDN-6OJdDBliG-rO_kzRFYl6S98dEwbj2Ab5dLnpVqu9a9XKdHlc53gWssMP6cIxP1pMh6kbdXYf4WkPkCrJX8wIg1oAeLJ0I-4i2G1eXKjxOQc=w572";

	const bisImages = [bis0URL, bis1URL, bis2URL, bis3URL, bis4URL];

	$(".original").find("img").attr('src',bis1URL);

	  const WIN_WIDTH = $(window).width();
	  const WIN_HEIGHT = $(window).height();
	  const IMG_WIDTH = 1024;
	  const IMG_HEIGHT = 768;

	  const ARR_LIMIT_NUM = 20;
	  const PAUSE_MILL = 300;

	  let react = true;
	  let noReactionCount = 0;

	  //1,8ピン側を上にしてZ軸プラスからマイナスの方向へ叩く前提です
	  const Y_HIT_THRESHOLD = 0.18;
	  const Z_HIT_THRESHOLD = -0.158;

	  let hitCount = 0;
	  let prevFilteredVal = {x: 0, y: 0, z: 0};
	  let rawAccelX = [];
	  let rawAccelY = [];
	  let rawAccelZ = [];

	  let obniz = new Obniz("OBNIZ_ID_HERE");

	  obniz.onconnect = async function(){
        let accel = obniz.wired("KXR94-2050", { vcc:0, gnd:1, x:2, y:3, z:4, enable:5, self_test:6});

	    obniz.repeat(async function(){

		  let accelValues = await accel.getWait();

		  //RCフィルタの適用と配列の制御
		  let filteredX = applyRCFilter(rawAccelX, accelValues.x);
		  let filteredY = applyRCFilter(rawAccelY, accelValues.y);
		  let filteredZ = applyRCFilter(rawAccelZ, accelValues.z);

		  await obniz.wait(30);

		  //反応したループの次のループでは叩いたと検知しない
		  if(react){

		  	//前ループとの差分で振動を判断
          	if((filteredZ - prevFilteredVal.z) < Z_HIT_THRESHOLD || filteredY - prevFilteredVal.y > Y_HIT_THRESHOLD){

				await addBiscuit();
				await obniz.wait(PAUSE_MILL);
				react = false;

          	}

		  }else{
			  noReactionCount++;

			  if(noReactionCount >= 1){
			  	react = true;
			  	noReactionCount = 0;
			  }

		  }

		  //前回のループの値として保存
		  prevFilteredVal = {x: filteredX, y: filteredY, z: filteredZ};

	  	}, 200);
	  }


	  function arrangeArray(arr, val){
		  arr.push(val);
		  if(arr.length > ARR_LIMIT_NUM){
			  arr.shift();
		  }
	  }

	  //RCフィルタ
	  function applyRCFilter(arr, val){
		  const RC_PARAM = 0.8;

		  arrangeArray(arr, val);

		  return RC_PARAM * arr[arr.length-1] + (1 - RC_PARAM) * arr[arr.length-2];
	  }

	  async function addBiscuit(){

		  console.log("hit");
		  let img = bisImages[Math.floor(Math.random()*bisImages.length)];

		  await $("#bis-images").append('<p class="added'+hitCount+'"><img src='+img+' width="16%" height="16%"></p>');

		  let leftPos = Math.floor(Math.random() * (WIN_WIDTH - 160));
		  let topPos = Math.floor(Math.random() * (WIN_HEIGHT - 80));

		  await $(".added"+hitCount).css({'width':IMG_WIDTH, 'height':IMG_HEIGHT});
		  await $(".added"+hitCount).css({'position':'absolute'});
		  await $(".added"+hitCount).css({'left':leftPos+'px', 'top':topPos+'px'});

		  await hitCount++;
	  }


  });

</script>
</body>
</html>

Run Now

The html will be opened to run a program.
