Tensorflow.js and Puppet with PoseNet

このエントリーをはてなブックマークに追加

PoseNet is a machine learning model that can estimate the human pose in real time with a web browser using TensorFlow.js which is a JavaScript version of Google's machine learning library TensorFlow. Since obniz works with JavaScript, I tried it with PoseNet.

In this program, puppet doll

  • mimic the pose of the smartphone. (smartphone built-in inertia sensor used)
  • mimic the pose of your face. (Web camera + PoseNet used)
  • stare at you. (Web camera + PoseNet used)

You can switch between these 3 modes.

Two servo motors are used, and in each mode, the doll can change the posture up and down, left and right.

Materials

obniz

Operation confirmation

Since the smartphone's inertial sensor is used in mode 1, and web camera and PoseNet is used in mode 2 or 3, this program may not work depending on the device. (It is not necessary to connect to obniz if you want to do only the operation confirmation below.)

Operation confirmation of the inertial sensor

Execute the program, select mode 1 and press the SET button, then yaw, pitch, and roll values ​​are displayed on the line labeled "RAW:" in the "Status" view at the bottom of the screen.
When keeping the smartphone horizontal and rotating it like a compass needle on the horizontal plane, if the leftmost value (yaw) changes between 0 and 360 degrees, it works properly.
We confirmed the operation with these environments.

  • Xperia Z3 (Android 6.0) + Chrome
  • AQUOS PHONE (Android 8.0) + Chrome

Operation confirmation of PoseNet

Execute the program (HTTPS connection required), select mode 2 or 3, wait a while, and if the image of the camera appears and the position of eyes and nose are recognized, it is working properly.
We confirmed the operation with these environments.

  • AQUOS PHONE (Android 8.0) + Chrome
  • MacBook Pro 2017 + Chrome

In the case of smartphones, in low speed mode of about 1 fps in the mode using the camera, in MacBook Pro, it got about 10 fps.

How to use

When obniz is connected, select the mode and press the SET button to start the operation. In Mode 1, the operation does not start until the START button is pressed in order to align the orientation of the smartphone with the doll. The STOP button stops the servo motors as it is. The RESET button returns the servo motors to the initial position and stops.
Also, in order to prevent the servo motors from moving rough, Max Speed ​​and LPF can be adjusted with bars. LPF is the coefficient of the low pass filter. The filter on the right is stronger and stops at the far right. The smaller the Max Speed ​​and the larger the LPF, the servo motors move gently, but the slower the reaction. If it is reversed, the reaction is early, but it gets rough.

How to make (hardware)

The circuit is just connecting two servo motors to obniz. They could be connected to anywhere, but I connected them as below.

Yaw direction servo motor
io0: signal line (yellow)
io1: VCC (red)
io2: GND (brown)

Pitch direction servo motor
io3: signal line (yellow)
io4: VCC (red)
io5: GND (brown)

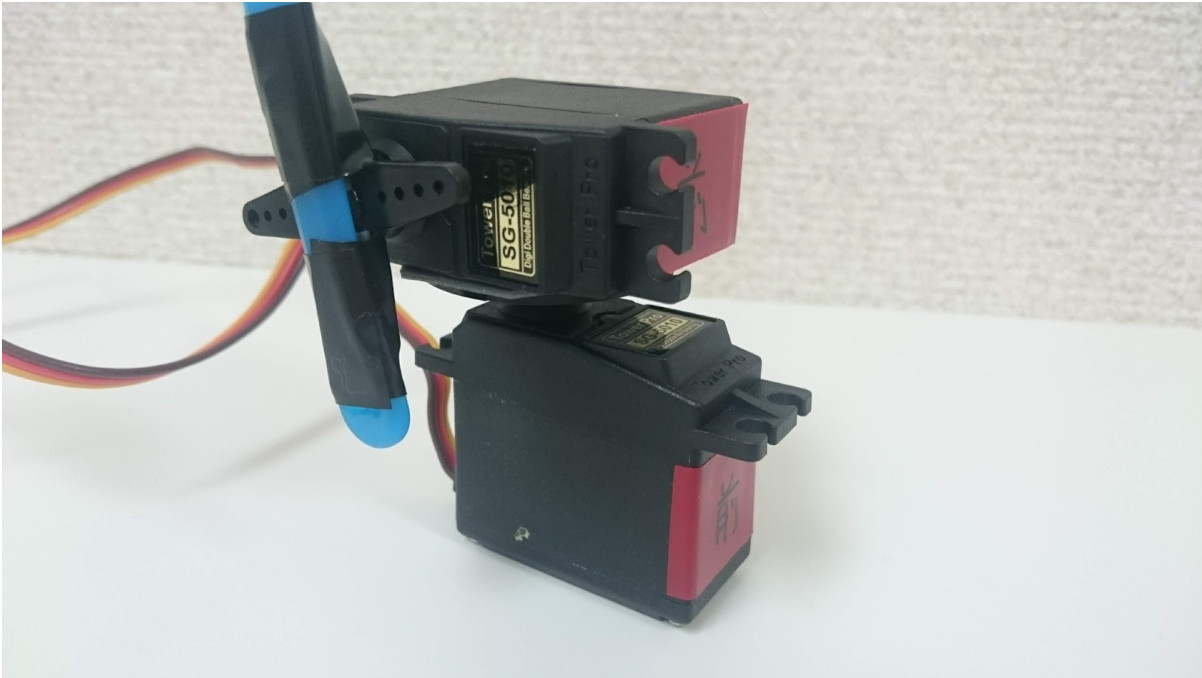

Two servo motors are fixed in such a direction as the picture, the lower servomotor is for the yaw axis and the upper servo motor is for the pitch axis.
Regarding the fixing of the servo motors, it is necessary to strongly bond the servo motors because the force due to the inertia of the doll when the servo motor moves quickly adds a large force to the contacts between the servo motors. This time I used the largest pedestal attached to the servomotor, I used 3M "super strong double-sided tape" with cushion.
Also a blue stick extends upwards, covered with a doll. It is necessary to devise to prevent the doll from idling.

How to make (software)

Mode selection

Elements whose classes are specified as “view-contents-1, 2, 3” are displayed only in each mode. You can select the mode from 1 to 3 with the select element. Pressing the SET button toggles the display according to the value of the mode selected at that time and executes bindPage() when using PoseNet and start posture estimation.

Getting inertial sensor values

In mode 1 the inertial sensor value of the device is used. $(Document).ready is executed when loading of HTML is completed, and here

        if (window.DeviceOrientationEvent) {
            window.addEventListener ('deviceorientation', function (eventData) {

, every time the pose of the device is obtained and yaw and pitch are calculated from eventData, and it is made to be able to refer at any time as smp.yaw and smp.pitch. The value is adjusted using the “constrain” function because the servo motor rotates from 0 to 180 degrees.

Pose estimation with PoseNet

In mode 2 and 3, the pose estimation by Web camera and PoseNet is used. I was used this site as a reference.
http://developers.gnavi.co.jp/entry/posenet/hasegawa

Set up of PoseNet and web camera is done in bindPage(); and start pose estimation with detectPoseInRealTime(video, net);
net.estimateSinglePose(video, imageScaleFactor, flipHorizontal, outputStride); is actually the part where the pose is estimated.
In drawPoints(poses, ctx);, get the coordinates of the parts, such as eyes and nose from the pose estimation results, and in the canvas, points and their part names are drawn at the place of each part.
In addition, for the mode 2, the yaw and pitch values ​​of the orientation of your face are simply calculated by trigonometric functions, and the values are stored in the object “mypose”. for the mode 3, the yaw and pitch values ​​the doll should face is calculated simply from the position of the nose in the screen, and the values are stored in the object “myposition”.

Driving of the servo motors

The angles of servo motors are updated by using the setInterval function in startServo function.
When starting the respective modes,
Mode 1 ... startServo (smp, 50)
Mode 2 ... startServo (mypose, 100);
Mode 3 ... startServo (myposition, 100)
are executed respectively, for example in the mode 1, with reference to the variable “smp”, “updateServo” function which is to update the angle of the servo motor in accordance with the values of yaw and pitch of “smp” will be called every 50 ms.

The angle of the servomotor is calculated and updated in this function:
moveServoToward (src.yaw, src.pitch, max_deg, min_deg);
In this function, a simple low-pass filter is implemented as a program to smooth the motion of the servomotor. lpf_a is the coefficient of the low-pass filter, s_yaw, s_pitch is the value of yaw and pitch of the servo motor before updating. A function that updates the servo motor angle directly is in setServo, and at the same time, that angle is assigned to s_yaw and s_pitch.

Program

<!DOCTYPE html>
<html>

<head>
    <meta charset="utf-8">
    <script src="https://unpkg.com/@tensorflow/tfjs"></script>
    <script src="https://unpkg.com/@tensorflow-models/posenet"></script>
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <script src="https://obniz.io/js/jquery-3.2.1.min.js"></script>
    <script src="https://unpkg.com/obniz@2.0.2/obniz.js" crossorigin="anonymous"></script>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/stats.js/r16/Stats.js"></script>
    <style type="text/css">
        h2 {
            padding: 0.4em 0.5em;
            color: #494949;
            background: #f4f4f4;
            border-left: solid 5px #7db4e6;
            border-bottom: solid 3px #d7d7d7;
        }

        h3 {
            background: #c2edff;
            padding: 0.5em;
        }

        .btn-container {
            display: flex;
            justify-content: center;
        }

        .btn-control {
            flex-grow: 1;
            text-align: center;
        }

        .btn-control input {
            font-size: 1.6em;
            font-weight: bold;
            padding: 10px 30px;
            height: 80px;
            width: 90%;
        }

        .data-view {
            margin: 8px;
        }

        .status-view {
            font-size: 1.6em;
            font-weight: bold;
            background: #FFFF99;
            text-align: center;
            padding: 5px;
        }
    </style>
</head>

<body>
    <div id="obniz-debug"></div>

    <h1>Posenet-Obniz</h1>
    <h2>
        <div id="view-mode"></div>
    </h2>

    <h3>Change Mode</h3>
    <form id="form-select-mode">
        <select name="select-mode">
            <option value="1" selected>1: Mimic the posture of phone</option>
            <option value="2">2: Mimic your pose</option>
            <option value="3">3: Stare at you</option>
        </select>
        <input type="button" id="btn-set-mode" value="SET" />
        <div>
            <input type="button" id="btn-stop" value="STOP" />
            <input type="button" class="btn-reset" value="RESET" />
        </div>
    </form>


    <h3>Control</h3>
    <div>
        <label>Max Speed
            <br>
            <input type="range" id="rng-speed" min=0 max=3 step=1>
        </label>
    </div>
    <div>
        <label>LPF
            <br>
            <input type="range" id="rng-lpf" min=0 max=1 step=0.01>
        </label>
    </div>


    <div class="view-contents-mode2 view-contents-mode3">
        <video id="video" width="800px" height="600px" autoplay="1" style="position: absolute;"></video>
        <canvas id="canvas" width="800px" height="600px" style="position: relative;"></canvas>
    </div>

    <div class="view-contents-mode1">
        <div class="btn-container">
            <div class="btn-control">
                <input type="button" id="btn-reset" class="btn-reset" value="RESET">
            </div>
            <div class="btn-control">
                <input type="button" id="btn-start" value="START">
            </div>
        </div>
    </div>

    <h3>Status</h3>
    <div class="view-contents-mode1">
        <div id="d1" class="data-view status-view"></div>
        <div id="d2" class="data-view"></div>
        <div id="d3" class="data-view"></div>
    </div>
    <div id="d4" class="data-view"></div>
    <div id="print"></div>
</body>

<script>

    const imageScaleFactor = 0.2;
    const outputStride = 16;
    const flipHorizontal = false;
    const stats = new Stats();
    const canvas = document.getElementById('canvas');
    const contentWidth = canvas.width;
    const contentHeight = canvas.height;
    const fontLayout = "bold 20px Arial";
    const fontPoint = "bold 15px Arial";

    var score = 0;
    var mypose = new Object();
    var myposition = new Object();
    var cvw = canvas.width;
    var cvh = canvas.height;

    var ang_view = {//angle of view of webcam. for mode 3
        x: 90, y: 60
    };

    async function bindPage() {
        const net = await posenet.load();
        let video;
        try {
            video = await loadVideo();
        } catch (e) {
            console.error(e);
            return;
        }
        detectPoseInRealTime(video, net);
    }

    async function loadVideo() {
        const video = await setupCamera();
        video.play();
        return video;
    }

    async function setupCamera() {
        const video = document.getElementById('video');
        if (navigator.mediaDevices && navigator.mediaDevices.getUserMedia) {
            const stream = await navigator.mediaDevices.getUserMedia({
                'audio': false,
                'video': { width: contentWidth, height: contentHeight }
            });
            video.srcObject = stream;

            return new Promise(resolve => {
                video.onloadedmetadata = () => {
                    resolve(video);
                };
            });
        } else {
            const errorMessage = "This browser does not support video capture, or this device does not have a camera";
            alert(errorMessage);
            return Promise.reject(errorMessage);
        }
    }

    function detectPoseInRealTime(video, net) {
        const ctx = canvas.getContext('2d');
        const flipHorizontal = true; // since images are being fed from a webcam

        async function poseDetectionFrame() {
            if (detect_pose == false) { return; }
            stats.begin();
            let poses = [];
            const pose = await net.estimateSinglePose(video, imageScaleFactor, flipHorizontal, outputStride);
            poses.push(pose);

            ctx.clearRect(0, 0, contentWidth, contentHeight);
            ctx.save();
            ctx.scale(-1, 1);
            ctx.translate(-contentWidth, 0);
            ctx.drawImage(video, 0, 0, contentWidth, contentHeight);
            ctx.restore();
            ctx.font = fontLayout;

            drawPoints(poses, ctx);

            stats.end();
            requestAnimationFrame(poseDetectionFrame);
        }
        poseDetectionFrame();
    }

    function getPart(partname, pose) {
        return pose["keypoints"].filter(function (partpoint) {
            if (partpoint.part == partname) {
                // console.log(partpoint);
                return true;
            }
        });
    }

    function drawPoints(poses, ctx) {
        poses.forEach(({ s, keypoints }) => {
            keypoints.forEach((partpoint) => {
                drawPoint(partpoint, ctx);
                drawPointName(partpoint, ctx);
            });
        });

        //get positions and scores
        var nose = getPart("nose", poses[0])[0];
        var eye_l = getPart("leftEye", poses[0])[0];
        var eye_r = getPart("rightEye", poses[0])[0];
        var ear_l = getPart("leftEar", poses[0])[0];
        var ear_r = getPart("rightEar", poses[0])[0];

        var n = nose.position;
        var l = eye_r.position;
        var r = eye_l.position;
        var p_ear_l = ear_l.position;
        var p_ear_r = ear_r.position;

        //Calculate scores
        var score = poses[0]["score"];
        var score_nose = nose.score;
        var score_face = (
            nose.score
            + eye_l.score
            + eye_r.score
            + ear_l.score
            + ear_r.score
        ) / 5;
        ctx.font = fontLayout;

        _mypose_yaw = Math.atan2(2 * n.x - l.x - r.x, r.x - l.x);
        var ear_y = (p_ear_l.y + p_ear_r.y) / 2;

        // mypose.score = score;
        if (score_nose > 0.9) {
            ctx.fillStyle = "blue";
            myposition.yaw = 90 - Math.atan((cvw - 2 * n.x) / cvw * Math.tan(ang_view.x / 2 * Math.PI / 180)) * 180 / Math.PI;
            myposition.pitch = 90 + Math.atan((cvh - 2 * n.y) / cvh * Math.tan(ang_view.y / 2 * Math.PI / 180)) * 180 / Math.PI;
            ctx.fillText("Nose: " + myposition.yaw.toFixed(0) + ", " + myposition.pitch.toFixed(0), 20, 40);
        } else {
            ctx.fillStyle = "red";
        }
        if (score_face > 0.75) {
            ctx.fillStyle = "blue";
            mypose.yaw = _mypose_yaw * -180 / Math.PI + 90;
            mypose.pitch = Math.asin(2 * (n.y - ear_y) * Math.cos(_mypose_yaw) / Math.abs(p_ear_r.x - p_ear_l.x)) * -180 / Math.PI + 90;
            ctx.fillText("Pose: " + mypose.yaw.toFixed(0) + ", " + mypose.pitch.toFixed(0), 20, 60);
        } else {
            ctx.fillStyle = "red";
        }
        ctx.fillText("Score: " + score_nose.toFixed(2) + ", " + score_face.toFixed(2), 20, 20);
        ctx.fill();

    }

    function drawPoint(point, ctx) {
        ctx.beginPath();
        ctx.arc(point.position.x, point.position.y, 3, 0, 2 * Math.PI);
        ctx.fillStyle = "pink";
        ctx.fill();
    }

    function drawPointName(point, ctx) {
        ctx.font = fontPoint;
        ctx.beginPath();
        ctx.fillStyle = 'rgba(155, 187, 89, 0.7)';
        ctx.fillText(point.part, point.position.x, point.position.y);
        ctx.fill();
    }

    var servo_y, servo_p;
    var s_yaw, s_pitch;
    var yaw0 = 0, pitch0 = 0;
    var mode = 1;
    var detect_pose = false;
    var smp = new Object();
    var max_dps = 300;
    var min_dps = 30;
    var lpf_a = 0.5;

    function constrain(amt, low, high) {
        return (amt) < (low) ? (low) : ((amt) > (high) ? (high) : (amt));
    };

    function diffAngle(ang, crt) {
        var ang_d = ang - crt;
        while (ang_d < 0 || ang_d > 360) {
            if (ang_d < 0) {
                ang_d += 360;
            } else if (ang_d > 360) {
                ang_d -= 360;
            }
        }
        return ang_d;
    }

    function setServo(yaw, pitch) {
        try {
            servo_y.angle(yaw);
            s_yaw = yaw;
            servo_p.angle(pitch);
            s_pitch = pitch;
            $('#d4').html("SERVO: " + s_yaw.toFixed(2) + ", " + s_pitch.toFixed(2));
        } catch (e) {
            console.error(e);
            return;
        }
    }

    function moveServoToward(yaw, pitch, max_deg, min_deg) {
        yaw = lpf_a * s_yaw + (1 - lpf_a) * yaw;
        pitch = lpf_a * s_pitch + (1 - lpf_a) * pitch;
        setServo(yaw, pitch);
    }

    function startServo(src, interval) {
        updateServo = setInterval(function () {
            // console.dir(src);
            max_deg = max_dps * (interval / 1000);
            min_deg = min_dps * (interval / 1000);
            moveServoToward(src.yaw, src.pitch, max_deg, min_deg);
        }, interval);
        $('#d1').html("RUNNING");
    }

    function stopServo() {
        if (typeof updateServo !== "undefined") {
            clearInterval(updateServo);
        }
        $('#d1').html("STOP");
    }

    $(document).ready(function () {
        $(".view-contents-mode1").hide();
        $(".view-contents-mode2").hide();
        $(".view-contents-mode3").hide();

        $('#btn-set-mode').on('click', function () {
            mode = $('[name=select-mode]').val();
            console.log('Mode changed! ' + mode);
            $('#view-mode').html('MODE' + mode + ': ' + $('[name=select-mode] option:selected').text());

            stopServo();
            detect_pose = false;
            $(".view-contents-mode1").hide();
            $(".view-contents-mode2").hide();
            $(".view-contents-mode3").hide();

            switch (mode) {
                case "1":
                    $(".view-contents-mode1").show();
                    break;
                case "2":
                    $(".view-contents-mode2").show();
                    detect_pose = true;
                    bindPage();
                    startServo(mypose, 100);
                    break;
                case "3":
                    $(".view-contents-mode3").show();
                    detect_pose = true;
                    bindPage();
                    startServo(myposition, 100);
                    break;
            }
        });

        if (window.DeviceOrientationEvent) {
            window.addEventListener('deviceorientation', function (eventData) {
                $('#d2').html("RAW: " + eventData.alpha.toFixed(2) + ", " + eventData.beta.toFixed(2) + ", " + eventData.gamma.toFixed(2));

                smp.raw_yaw = eventData.alpha;
                smp.raw_pitch = eventData.beta;

                _smp_yaw = diffAngle(eventData.alpha, yaw0);
                smp.yaw = constrain(_smp_yaw, 90, 270) - 90;

                _smp_pitch = diffAngle(eventData.beta, pitch0);
                smp.pitch = constrain(_smp_pitch, 90, 270) - 90;

                $('#d3').html("PHONE: " + smp.yaw.toFixed(2) + ", " + smp.pitch.toFixed(2));
            });
        }

        $('.btn-reset').on('click', function () {
            setServo(90, 90);
            stopServo();
        });

        $('#btn-start').on('click', function () {
            yaw0 = smp.raw_yaw - 180;
            pitch0 = smp.raw_pitch - 180;
            startServo(smp, 50);
        });

        $('#btn-stop').on('click', function () {
            stopServo();
        });

        $('#rng-speed').on('input', function () {
            var ds = [50, 100, 300, 999];
            max_dps = ds[$(this).val() * 1];
            if (max_dps == 999) {
                min_dps = 0;
            } else {
                min_dps = Math.max(max_dps * 0.3, 50);
            }
        });

        $('#rng-lpf').on('input', function () {
            lpf_a = $(this).val();
        });

    });


    var obniz = new Obniz("");
    obniz.onconnect = async function () {
        servo_y = obniz.wired("ServoMotor", { signal: 0, vcc: 1, gnd: 2 });
        servo_p = obniz.wired("ServoMotor", { signal: 3, vcc: 4, gnd: 5 });
        setServo(90, 90);
    }

</script>


</html>
