FullColorLED WS2812B clock

このエントリーをはてなブックマークに追加

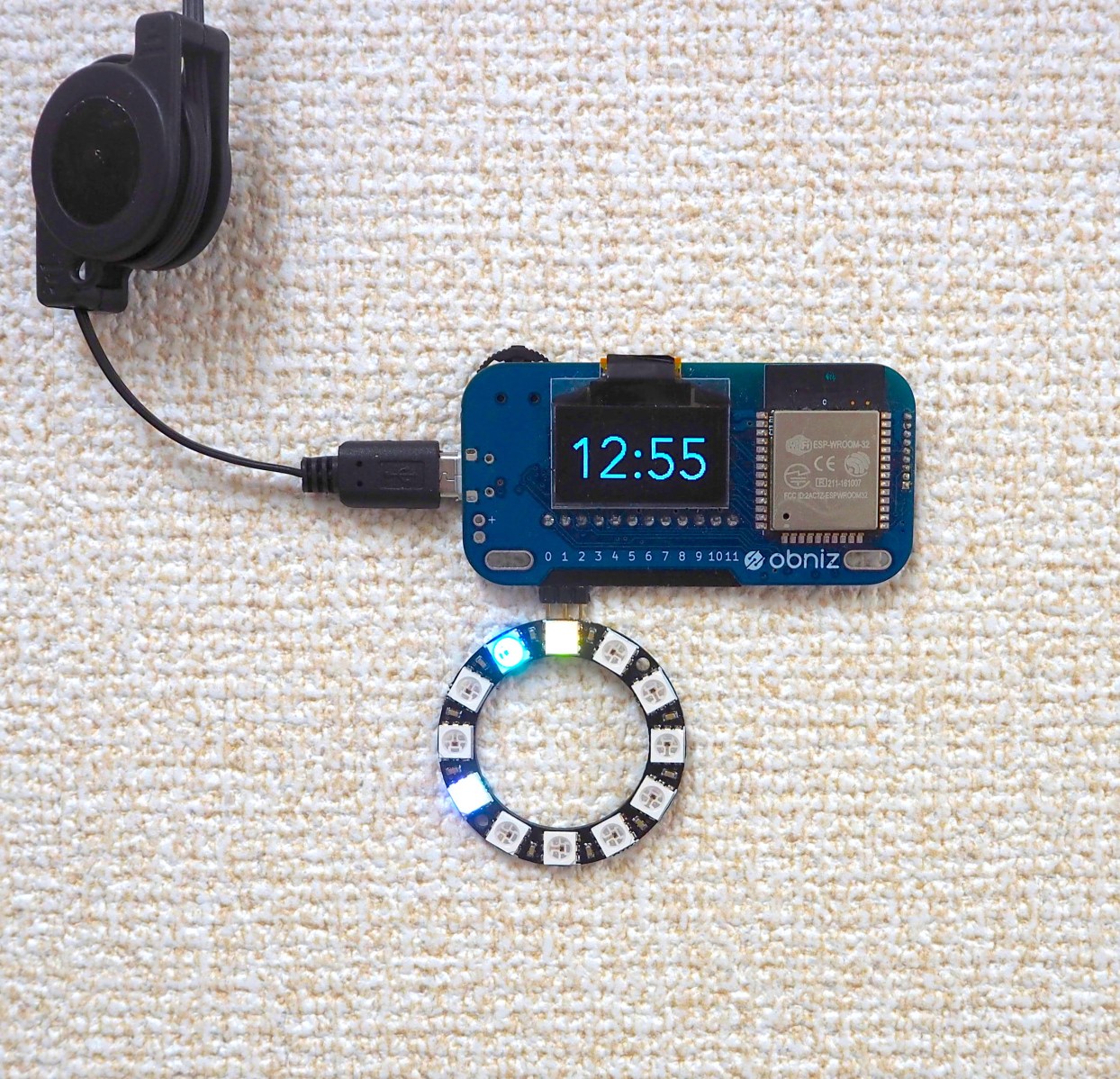

NeoPixcel WS2812B has 12 full color LED.

Why don’t you create a clock with obniz?

Materials

obniz

Battery

NeoPixcel ( soldered three pins )

Program

Every seconds, led to be light on is calculated.
And We use WS2812B obniz.js parts library.

Program

<!-- HTML Example -->
<html>
<head>
  <meta name="viewport" content="width=device-width, initial-scale=1">
  <script src="https://obniz.io/js/jquery-3.2.1.min.js"></script>
  <script src="https://unpkg.com/obniz@2.0.2/obniz.js" crossorigin="anonymous"></script>
</head>
<body>

<div id="obniz-debug"></div>


<script>
const obniz = new Obniz("OBNIZ_ID_HERE");
obniz.onconnect = async function () {

  const leds = obniz.wired("WS2812B", {gnd:2, vcc: 1, din: 0});

  let positions = [0,0,0];

  obniz.repeat(()=>{

    var date = new Date();
    positions[0] = date.getHours() % 12;
    positions[1] = parseInt(date.getMinutes() / 5);
    positions[2] = parseInt(date.getSeconds() / 5);

    updateLED();

    var ctx = obniz.display._ctx();
    ctx.fillStyle='#000'
    ctx.fillRect(0, 0, obniz.display.width, obniz.display.height);
    ctx.fillStyle='#FFF';
    ctx.strokeStyle='#FFF';
    obniz.display.font('Avenir', 50)
    obniz.display.pos(0,0);
    obniz.display.print(`${date.getHours()}:${date.getMinutes()}`)

  }, 1000);

  function updateLED() {
    let brightness = 20;

    let arr = [];
    for (let i=0; i<12; i++){
      arr.push([0, 0, 0]);
    }
    arr[positions[0]][0] = brightness;
    arr[positions[0]][1] = brightness;
    arr[positions[1]][1] = brightness;
    arr[positions[1]][2] = brightness;
    if ((new Date()).getSeconds()%2==0) {
        arr[positions[2]][0] = brightness;
        arr[positions[2]][1] = brightness;
        arr[positions[2]][2] = brightness;
    }

    arr.unshift(arr.splice(-1, 1)[0])

    leds.rgbs(arr);
  }

}

</script>
</body>
</html>

Run Now

The html will be opened to run a program.
